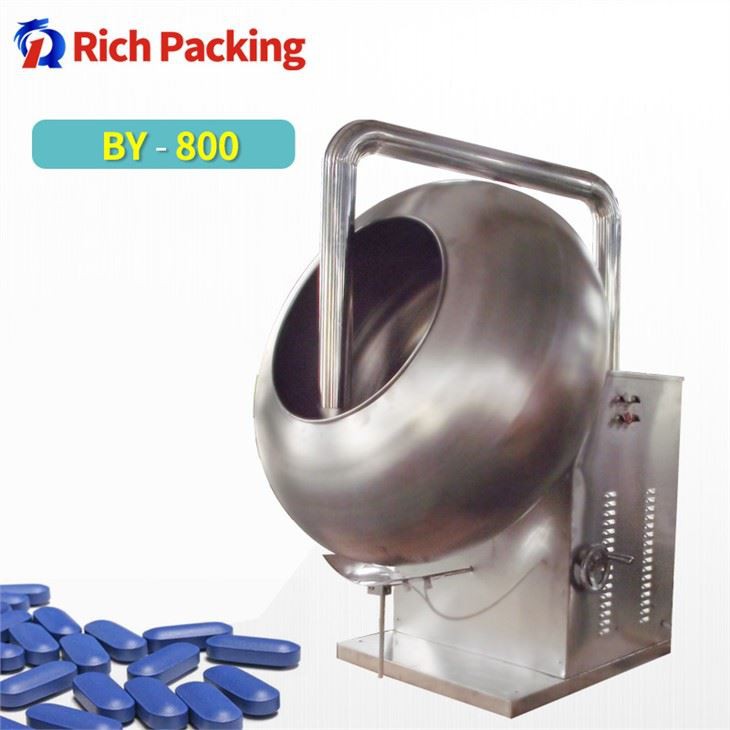

Mini Coating Machine Desktop Tablet Sugar Coating Machine

The Mini Coating Machine Desktop Tablet Sugar Coating Machine is the primary task room of the high-efficiency coating machine. The electromechanical is explosion-proof. The drum is made of stainless steel mesh plate. The door is equipped with a movable rod and the rod end is equipped with an adjustable medium spray gun. The main drive system of the drum is a frequency converter controlled by a frequency converter. Both sides of the drum are equipped with hot air inlet and exhaust ducts.

The hot air required by the main machine is heated by the heat exchanger to the required temperature above 80 ℃ by the hot air blower to be forced into the task room of the coating machine for the main machine to produce. The hot air blower is the heat source supply system of the host, mainly composed of a low-noise axial flow fan, a filter, and a stainless steel U-shaped heater.

The dust removal and exhaust fan of the high-efficiency coating machine is composed of a centrifugal fan, a shell bag filter, a vibrating head structure, and an ash collection drawer. The first thing is to make the task area of the coating drum form a negative pressure form through the task of the exhaust fan, and then discharge the exhaust gas after collecting the ash through the woven bag, and make the external exhaust body meet the requirements of "cGMP".
